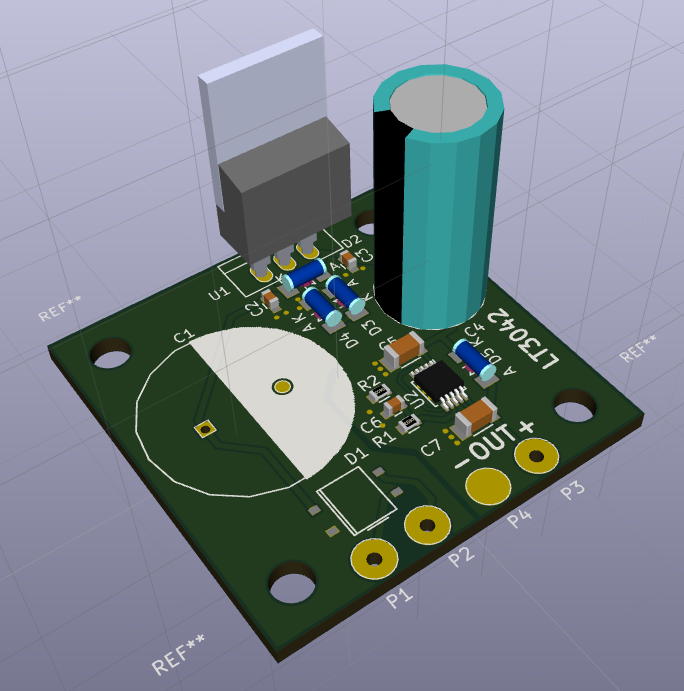

Ultra Low Noise Linear Power Supply, using LT3042
Small power regulator PCB, with AC inputs and DC output.
- 78xx as a pre-regulator, to reduce power loss on the LT3042 and to increase the max. input voltage
- Output voltage: 0-15V
- Output current: max. 200mA
- Input voltage: max. 20VAC
Setting the Voltage
The LT3042 has a very nice way to set the output voltage. Instead of using an internal voltage reference and an external voltage devider, a constant current is driven through a user settable resistance, which is then the reference voltage!
U_out = 100uA * R1||R2
e.g. with R1||R2 = 50kΩ, U_out = 5V
Schematic
KiCad project
OSH-Park
You can directly order this PCB from oshpark.com
